Biochemical Assay Kit for Mouse IDO1 (mIDO1)
NFK Green™ Assay Technology
Indoleamine 2,3-dioxygenase 1 (IDO1) is an enzyme that converts L-tryptophan into NFK, which is the first step in the kynurenine pathway of tryptophan degradation. IDO1 is an important drug target for cancer immunotherapy and neurodegenerative diseases. NFK can form a complex with the chemical probe NFK Green™ and can thereby be detected in a fluorescence assay. The mouse IDO1 (mIDO1) biochemical assay kit can be used to determine the potency of IDO1 inhibitors.
Schematic representation of the NFK Green™ assay principle. After enzymatic conversion of L-tryptophan into NFK, the reaction is stopped by addition of NFK Green™, which yields a fluorescent complex that can be detected at the indicated wavelengths.

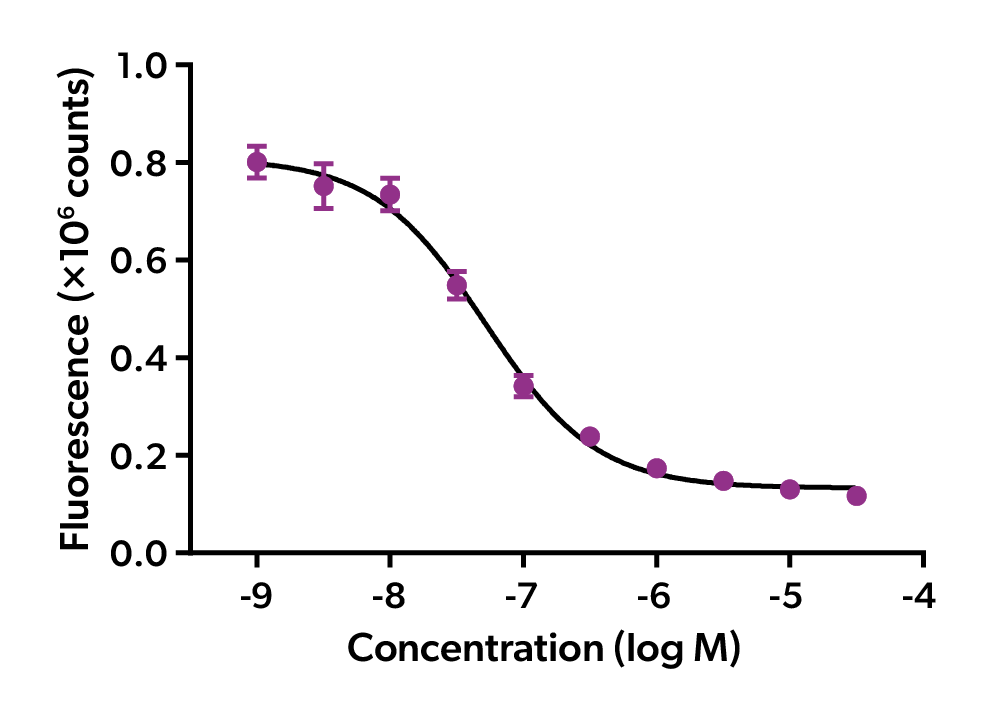

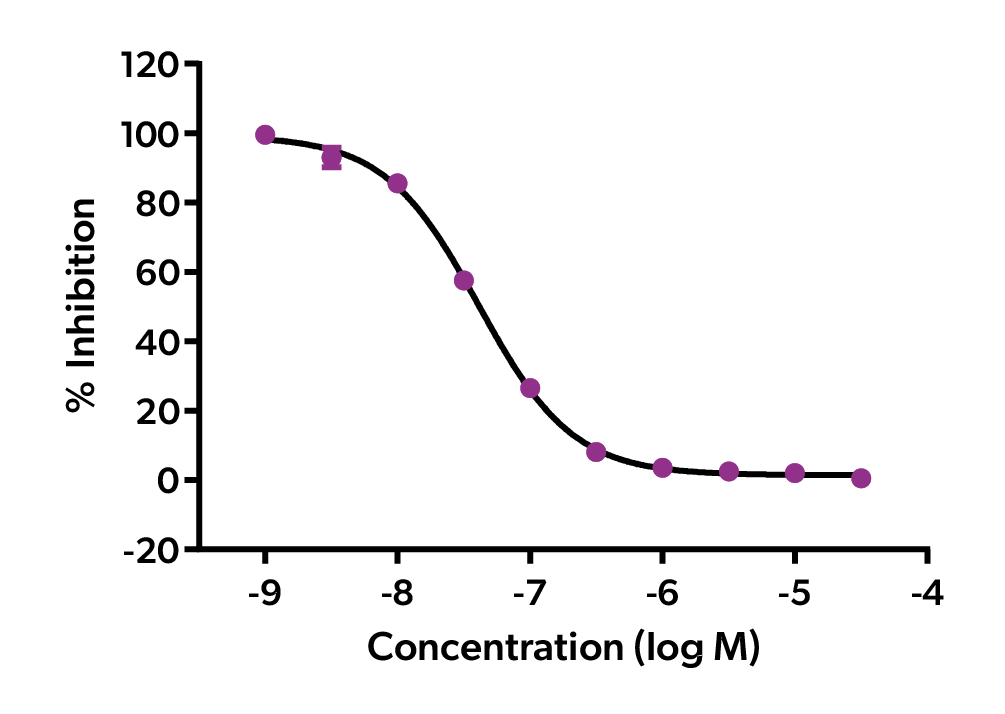

Dose-response curve for the reference IDO1 inhibitor in the NFK Green™ mIDO1 assay.
Kits contents
| Component | Description | Stock conc. in kit | Conc. in assay |
|---|---|---|---|
| Enzyme | mIDO1 | 145 μM in storage buffer | 25 nM |
| Substrate | L-Tryptophan | 0.4 mM in MilliQ | 0.1 mM |
| Probe | NFK Green™ | Ready to use | 1x |
| Reference compound | NTRC 0820-0 | 10 mM in 100% DMSO | 10 μM |
| IDO1 assay buffer | Reaction buffer | Ready to use | – |
Advantages of NFK Green™
Detection
NFK Green™ assays can be read out using a fluorescence reader with monochromators or filters that can handle excitation at 400 nm and emission detection at 510 nm. PerkinElmer Envision® multilabel plate readers with 400/25 (excitation; M400w) and 510/20 (emission; M510w) filters and the D425/D490 dual mirror have already been successfully used to measure the signal of NFK Green™ assays in 384- and 1536-well format.

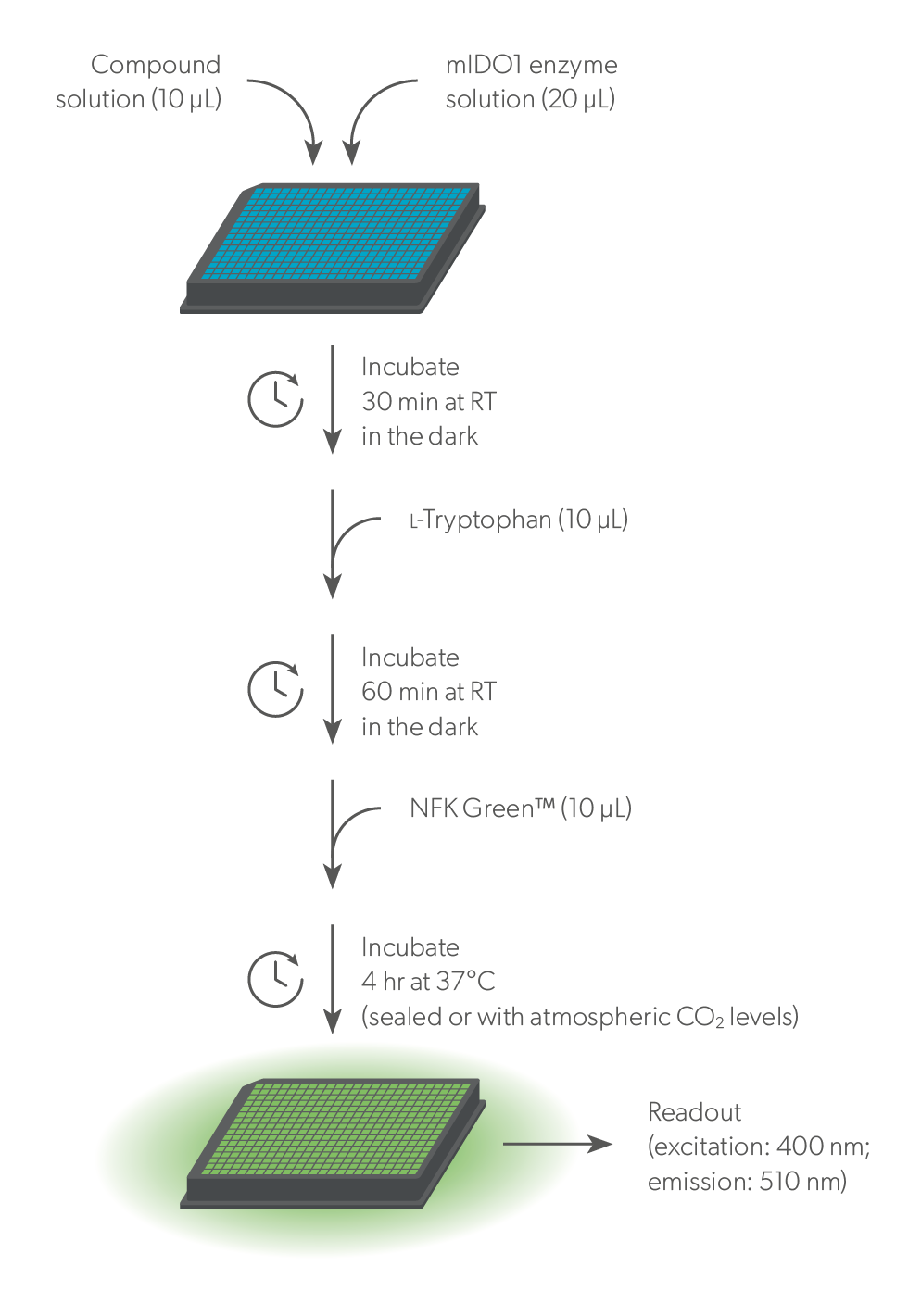

Assay Flowchart
